Timing Function

Voice Control
Traditional curtains have been upgraded to be smart, with simple voice commands enabling automatic opening and closing, making your life more convenient and comfortable.

Applicable Curtain Types
Whether it is opening and closing curtains, projection screens or rolling curtains, the smart curtain switch can be perfectly adapted and easily achieve smart control upgrades.

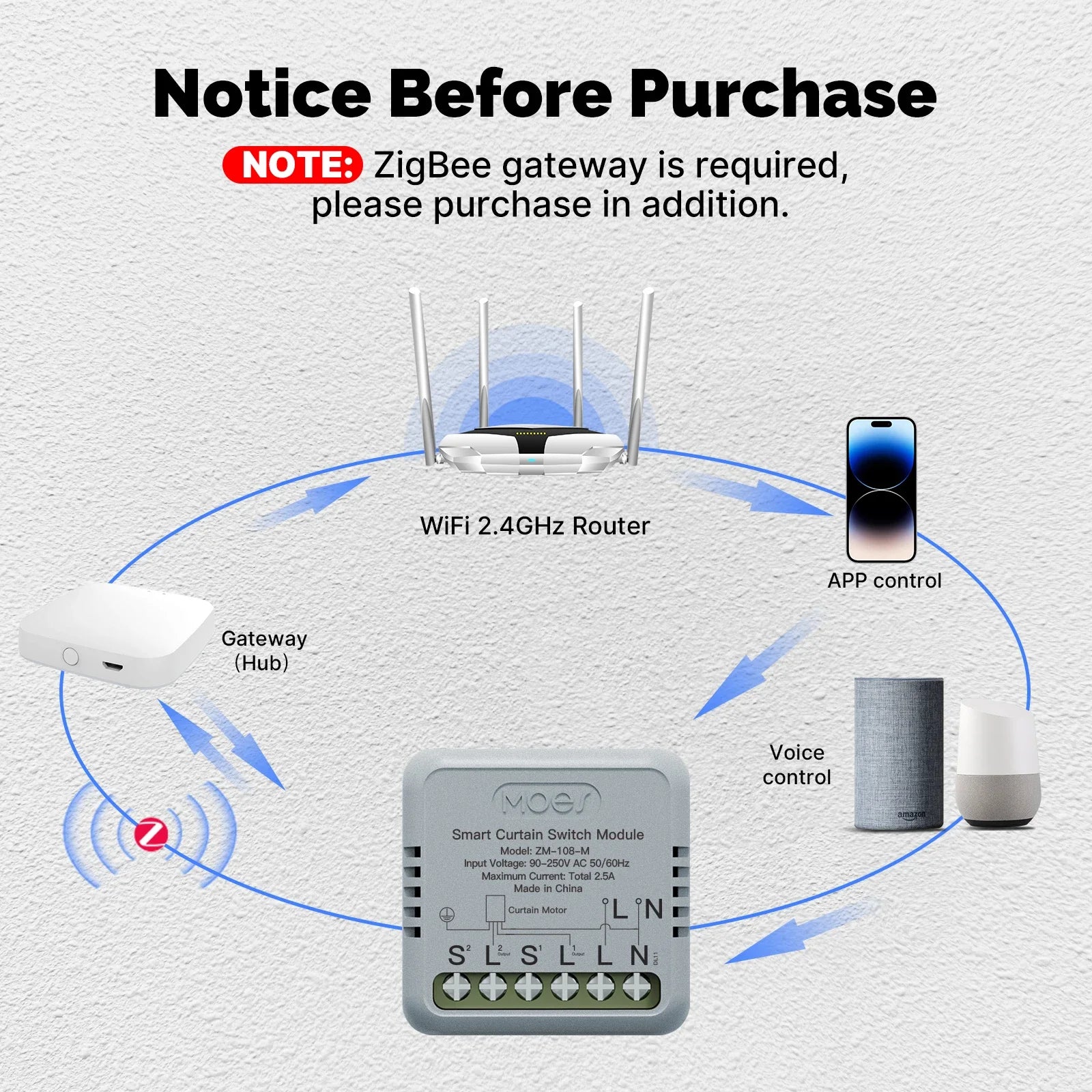

Smart Linkage
Seamlessly connect with a variety of smart home devices to achieve one-touch scene control, making your life more convenient and intelligent.

Motor Rotation Switchable
According to the installation direction, you can adjust the correct switch direction with one click in the APP to ensure that the curtains are opened and closed correctly.

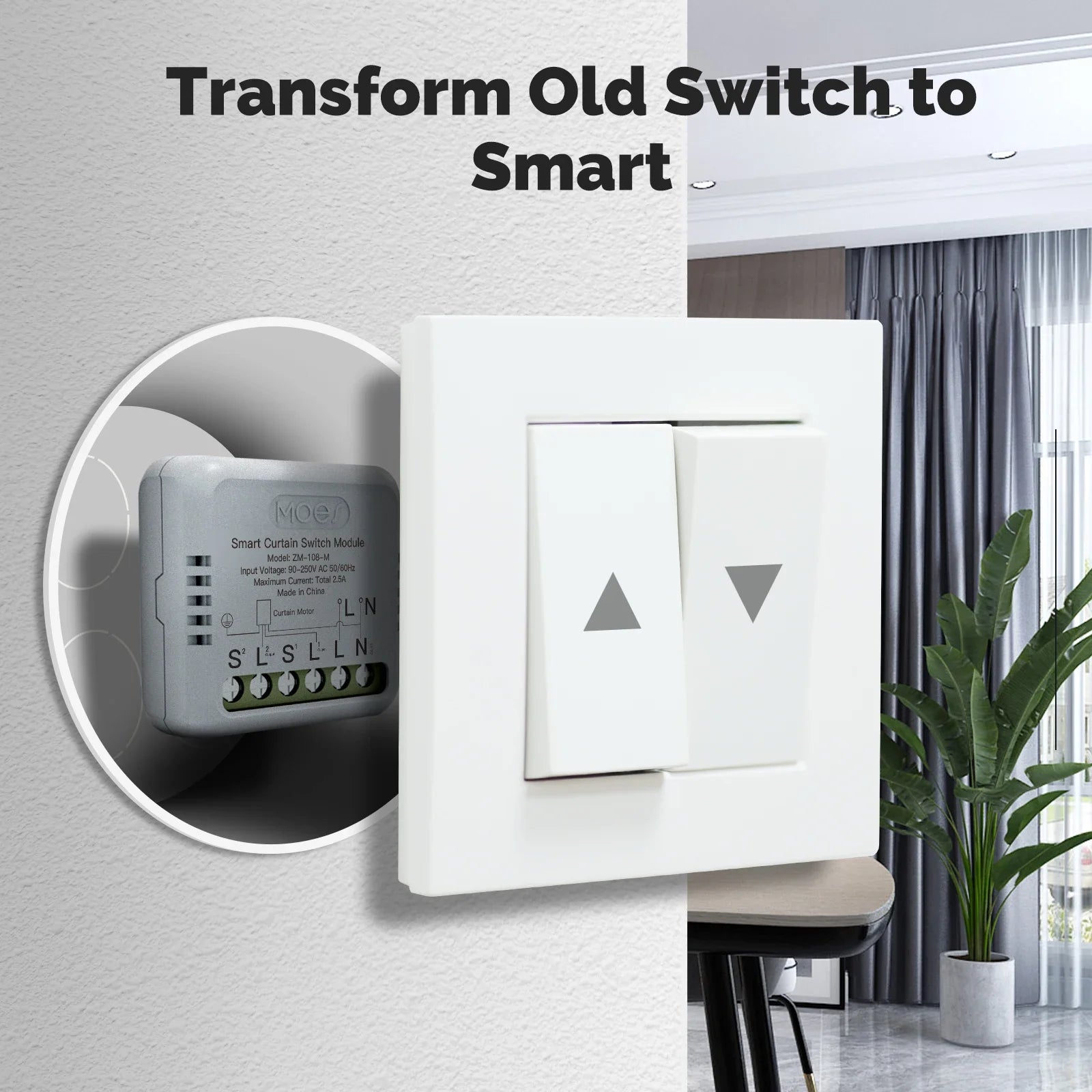

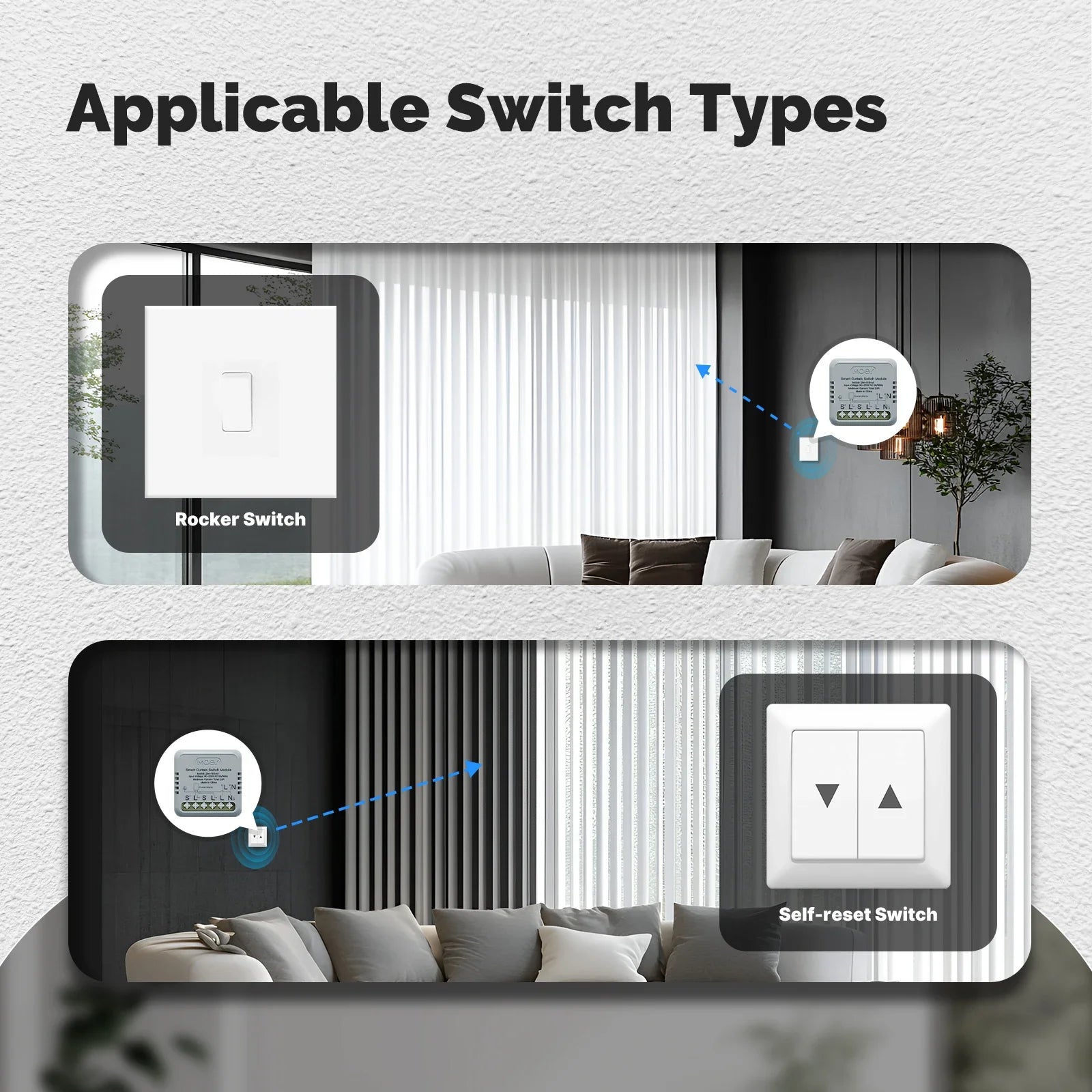

Applicable Switch Types
You can choose a rocker switch or a self-reset switch, which is compatible with common switch types on the market and convenient for users to carry out smart transformation.

Accurate Calibration & Quick Calibration for Choice
It provides two modes: precise calibration and quick calibration to meet the needs of different users, ensuring that the curtains run smoothly and accurately, and making installation and debugging more flexible and efficient.
Note: The switch connected with curtain switch module is required.

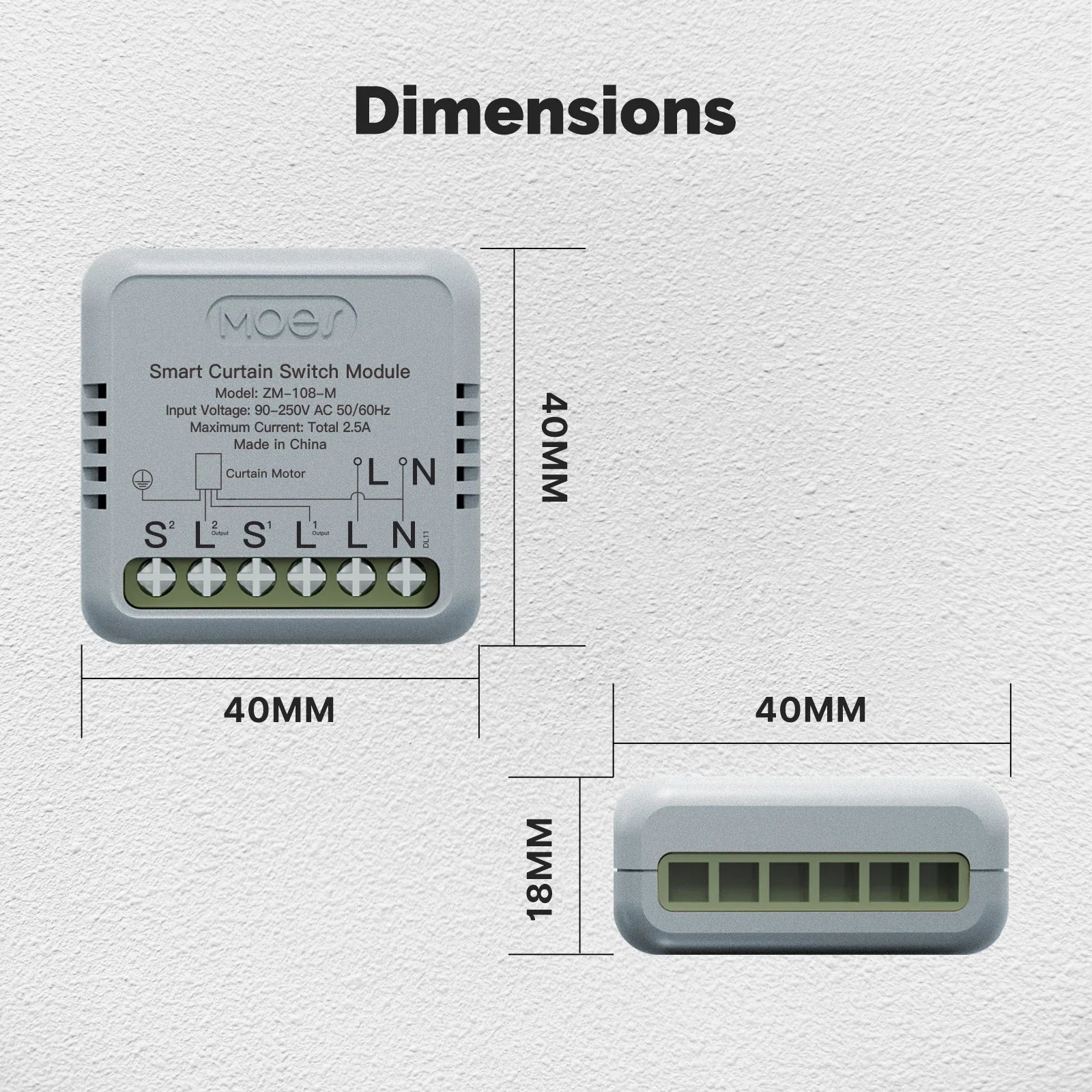

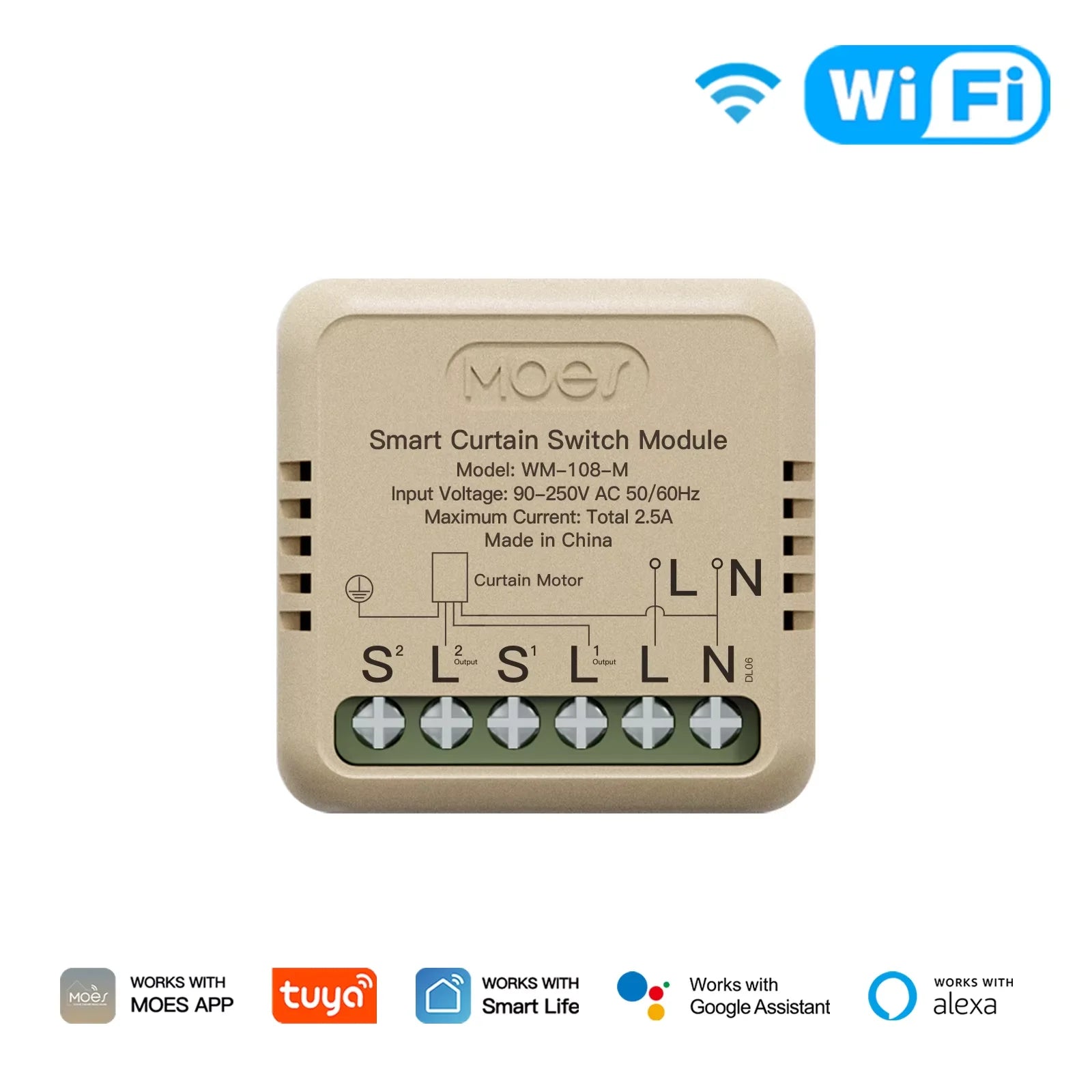

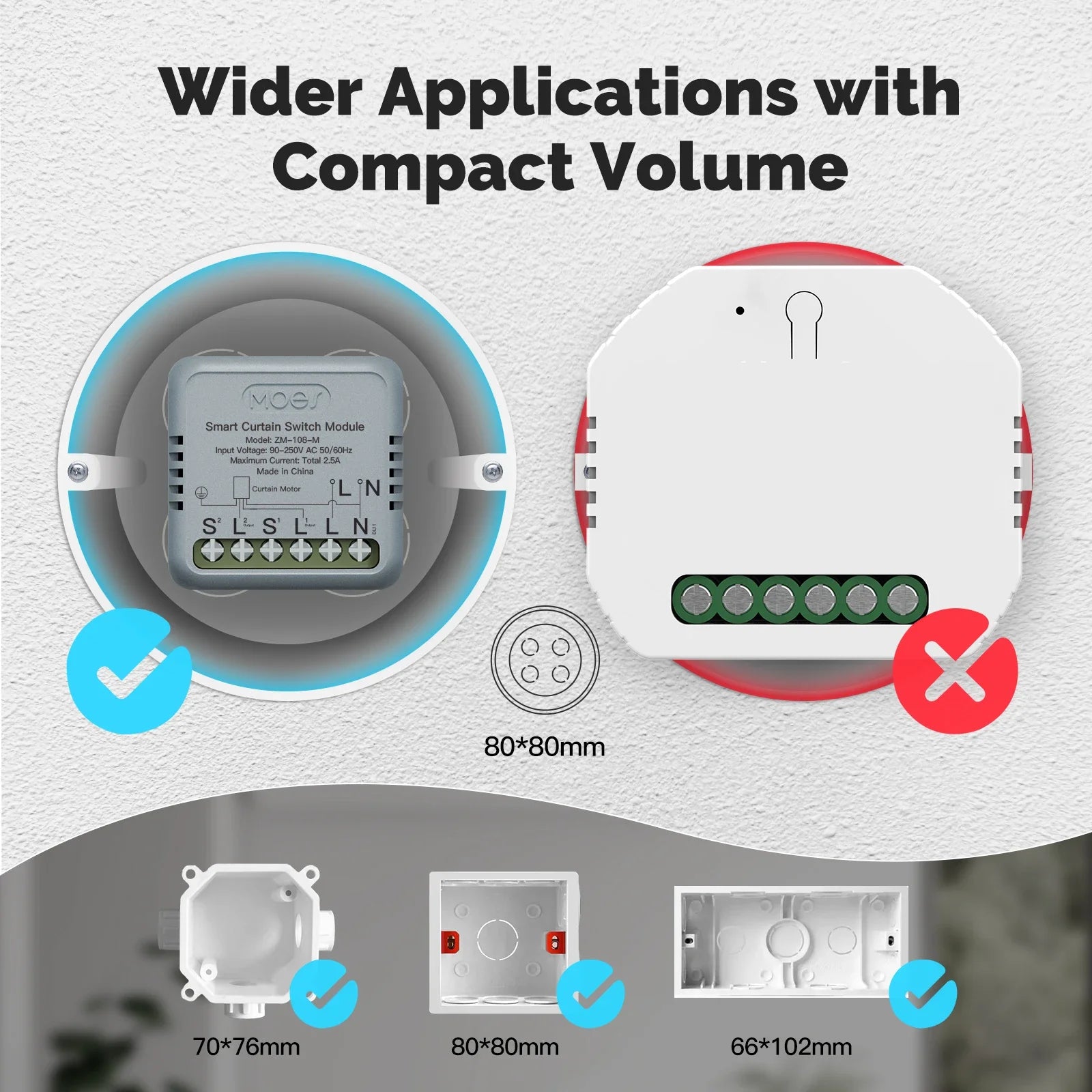

Dimensions-WIFI-

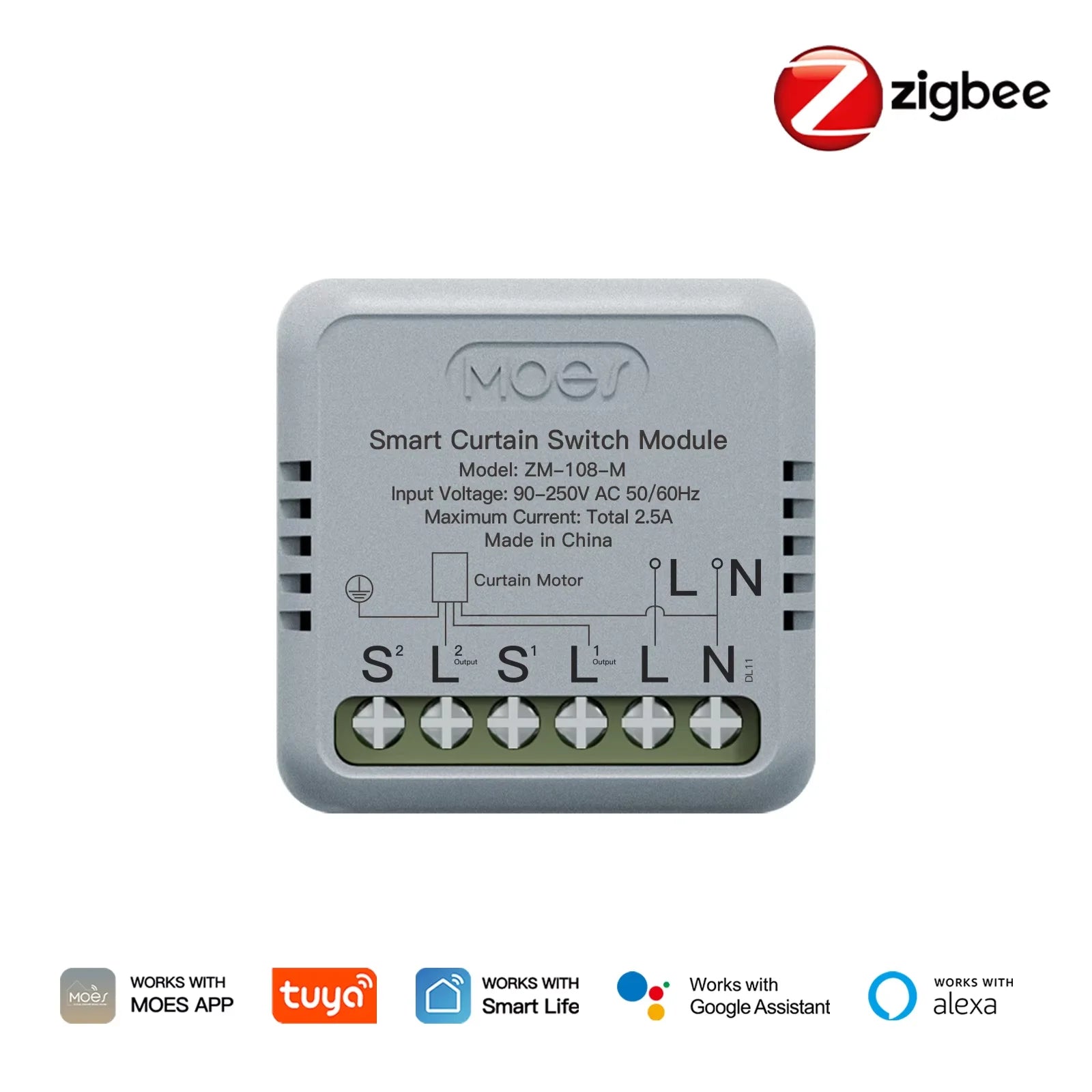

Dimensions-ZIGBEE-

Technical Specifications:

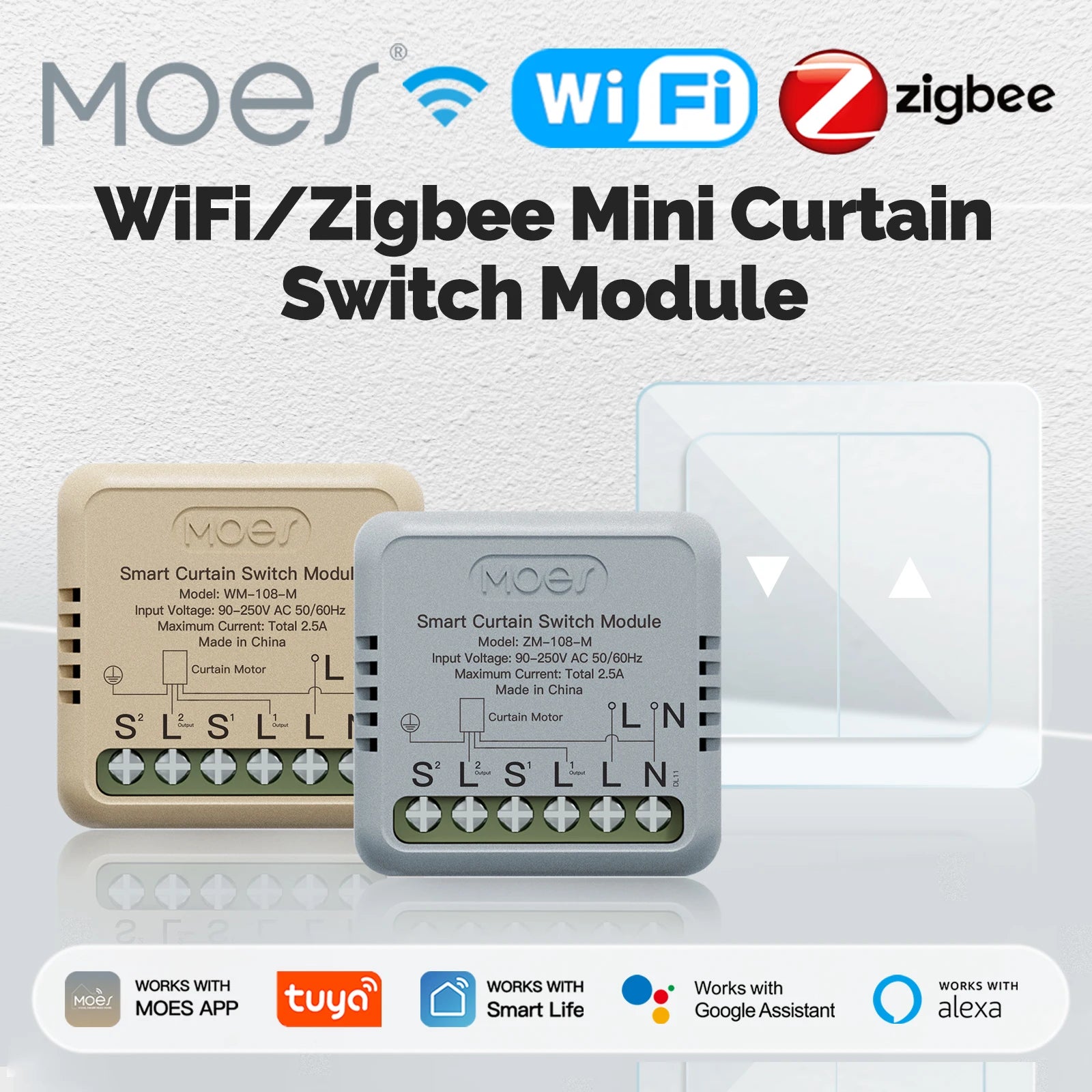

Product Type: Smart Curtain Switch Module
Voltage: 90-250V AC 50/60Hz
Current: 2.5A/Gang;Total 2.5A
Wireless Protocol: WiFi/ZigBee
Operation Temp.: -10℃~65℃
Case Temp.: Tc: +80℃(Max.)
Operation Range: ≤70 m
Dims (WxDxH): 40x40x18 mm
IP Rating: IP20
Frequency Band: 2.412-2.484GHZ
Maximum Radio Transmit Power: <+10dBm
RoHS Standard (RoHS): 2011/65/EU,(EU) 2015/683
